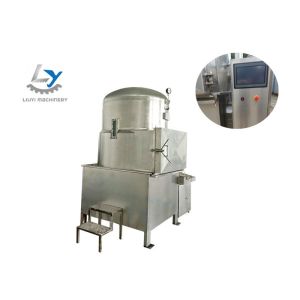

Multi Function Automatic Chips Frying Machine Full Microcomputer Automatic Control
The vacuum frying equipment effectively avoids the damage of the nutrients and quality of the food. It retains the original flavor and nutrients of the raw materials better. The finished products have a better quality than the traditional fried techniques.Our machine adopts microcomputer automatic control and mechatronics. It has reliable operation and stable performance. It is heated by circulating oil and the material can be heated evenly. The part of machine that comes into contact with food is made of stainless steel and is safe.
Fresh raw material→ split, peeled → cleaned → sliced → blanched → cooled → frozen → thawed → dipped → vacuum fried → seasoning → packaging → finished product
1) Fruits: Apple, Banana, Pineapple, Peach, Jackfruit etc.
2) Vegetables: Okra, Carrot, Pumpkin, Snap bean, Sweet potato, Taro, Potato, Garlic, Green Pepper, Onion, etc.
3) Nuts: cashew nut, Peanut, etc.
4) Seafood: shrimp, crab, fish, etc.
5) Poultry.
Normal Process of Pre-treatment Before Vacuum Frying
| SPECIFICATIONS | |||
| Model | VF-LY50 | VF-LY100 | VF-LY200 |
| Raw Material Input | 30kg-50kg | 80kg-100kg | 170kg-200kg |
| Machine Material | food grade SS304 | food grade SS304 | food grade S304 |
| Basket size | Φ600mm*H500mm | Φ750mm*H530mm | Φ1200mm*H600mm |
| L*W*H | 1400*3500*2500mm | 1800*4000*2900mm | 2500*4500*3100mm |
| Oil Volume | 300-500kg | 600-800kg | 1000-1200kg |
| Vacuum Degree | -0.095mpa~-0.098mpa | -0.095mpa~-0.098mpa | -0.095mpa~-0.098mpa |
| Steam Pressure | 4-8kg | 4-8kg | 4-8kg |
| Frying Temperature | 75-110℃ | 75-110℃ | 75-110℃ |
| Oil Pump | 3kw | 5.5kw | 7.5kw |
| Vacuum Pump | 7.5kw | 11kw | 15kw |
| Vacuum Frying | Deep Frying |
| Frying happens below the boiling point of water ie 100℃ (used for steaming the vegetable)…So there is no burning of any ingredients. | Frying happens at 200-250℃. At this temp, burning of ingredients happens. |
| There is no oxygen so no oxidation of minerals | There is oxygen in atmosphere reacts with minerals for Oxide like Calcium Oxide, Iron Oxide, Manganese Oxide etc. |
| Nutrients and vitamins remain up to 99.99% intact. | Nutrient and vitamins get destroyed by more than 50% |
| The natural fiber remains intact up to 100% | The natural fiber get broken by up to 100% |
Catalog for Automatic Vacuum Frying Machine.pdf
In recent years, our company's technological innovation has continued to develop. The number of invention patents has continuously increased. Companies in good faith, quality, innovation, professionalism, unity, and enterprising, to achieve manufacturing, installation, one-stop after-sales service. We can better serve our customers. Excellent professional technical and sales talents, as well as advanced technology and engineering level, will solve the challenges you face in the production.
Our company will sincerely cooperate with friends from all walks of life to develop together.
FAQ
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2) How do you make your price?
We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacturer. You will get competitive price and high quality.
3) Can you guarantee your quality?
Of course. We are the factory. More important, we put a high value on our reputation. High quality is our principle all the time. You can be assured on our production completely.
4) How long does the whole procedure being worked out?
After you place an order, for small quantity 15-20 days is enough. For big quantity, we can talk further.
5) What about the transportation and delivery date?
Normally we use sea for shipment to save customer's money. It is about 25-40 days. It also depends on which country and port you are.
